Understanding Non Return Valves (NRVs)
Understanding Non Return Valves (NRVs): Functionality, Types, and Applications
In the complex world of fluid dynamics and piping systems, ensuring the unidirectional flow of fluids is crucial for both safety and efficiency. Non return valves (NRVs), also known as check valves, play an essential role in preventing backflow, which can cause contamination, equipment damage, and system inefficiencies. This comprehensive guide delves into the intricacies of non-return valves, exploring their functionality, types, applications, and the critical factors to consider when selecting the right NRV for your system.

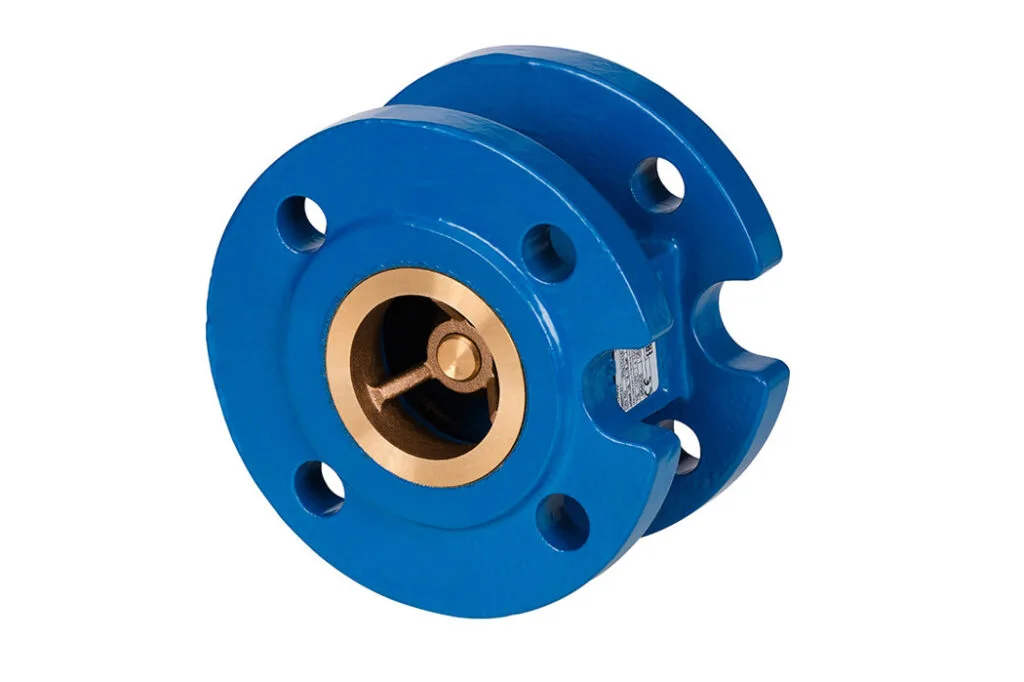

What is a Non-Return Valve (NRV)?
Definition and Basic Function
A non return valve (NRV) is a mechanical device that allows fluid—whether liquid or gas—to flow through it in only one direction. It automatically prevents the backflow of fluid, ensuring that the system operates correctly and safely. By permitting flow in a single direction, NRVs protect equipment, maintain process efficiency, and prevent contamination.
Importance of Preventing Backflow
Backflow can lead to numerous issues, including:
- Contamination: In water supply systems, backflow can cause wastewater to mix with clean water, posing health risks.
- Equipment Damage: Reverse flow can damage pumps, compressors, and other equipment not designed to handle flow in both directions.
- Process Disruption: In industrial settings, backflow can alter process conditions, leading to product quality issues or system shutdowns.
By installing NRVs, these potential problems can be effectively mitigated, ensuring the integrity and safety of various systems.
How Non Return Valves (NRVs) Work
Basic Operating Principle
The operation of an NRV is straightforward yet ingenious:
- Forward Flow: When fluid flows in the intended direction, it pushes the valve’s disc, ball, or diaphragm open, allowing unobstructed passage.
- Reverse Flow: If the fluid attempts to flow backward, the NRV mechanism closes automatically, typically through gravity, backpressure, or a spring-loaded mechanism.
- Sealing: The closure prevents any reverse movement of fluid, maintaining unidirectional flow.
This automatic operation requires no manual intervention or external power source, making NRVs reliable and low-maintenance components in fluid systems.
Components of a Non Return Valve
- Body: The outer casing that contains all internal components and connects to the piping system.
- Disc/Ball/Plate: The moving part that opens to allow forward flow and closes against the seat to prevent backflow.
- Seat: The surface against which the disc seals to stop reverse flow.
- Spring (in some types): Provides the force necessary to close the valve promptly when forward flow decreases or stops.
Types of Non Return Valves (NRVs)
Understanding the different types of NRVs helps in selecting the right one for specific applications.
Swing Check Valves
- Design: Features a hinged disc that swings open with forward flow and closes when flow stops or reverses.
- Advantages: Low pressure drop, suitable for low-velocity systems.
- Applications: Water and wastewater treatment plants, firefighting systems.
Lift Check Valves
- Design: The disc lifts vertically off the seat during forward flow and drops back to seal against the seat when flow stops.
- Advantages: Suitable for high-pressure applications.
- Applications: Steam, gas, and high-pressure liquid lines.
Ball Check Valves
- Design: Utilizes a ball that moves up and down within the valve body to allow or block flow.
- Advantages: Simple design, can handle slurries and viscous fluids.
- Applications: Pumping systems, sewage systems, and slurry handling.
Diaphragm Check Valves
- Design: Employs a flexible rubber diaphragm that flexes open with forward flow and closes to prevent backflow.
- Advantages: Good for preventing contamination, silent operation.
- Applications: Medical equipment, pharmaceutical processing, food and beverage industries.
Wafer Check Valves
- Design: Compact, thin valves that fit between flanges, often using dual plates that fold together upon reverse flow.
- Advantages: Space-saving, reduces water hammer effect.
- Applications: HVAC systems, fire protection systems, chemical processing.
Stop Check Valves
- Design: Combines features of a lift check valve and a globe valve, allowing manual override to stop flow regardless of flow direction.
- Advantages: Provides additional control, can function as an isolation valve.
- Applications: Boiler systems, power plants, steam systems.
Materials and Construction of NRVs
Common Materials Used
- Metals:
- Brass: Resistant to corrosion, suitable for water and mild chemicals.
- Stainless Steel: High strength, corrosion-resistant, ideal for aggressive environments.
- Cast Iron: Cost-effective for large NRVs in low-pressure applications.
- Plastics:
- PVC (Polyvinyl Chloride): Lightweight, corrosion-resistant, used in chemical processing.
- CPVC (Chlorinated Polyvinyl Chloride): Higher temperature resistance than PVC.
- Special Alloys:
- Hastelloy, Inconel: For high-temperature or highly corrosive applications.
Factors Influencing Material Selection
- Corrosion Resistance: Essential for longevity in corrosive environments.
- Temperature and Pressure Ratings: Materials must withstand operating conditions without degrading.
- Chemical Compatibility: Prevents reactions that could compromise valve integrity or contaminate the fluid.
Applications of Non Return Valves (NRVs)
Plumbing Systems
- Preventing Backflow: NRVs protect potable water supplies from contamination by wastewater or other pollutants.
- Common Uses: Residential and commercial buildings, irrigation systems.
Industrial Processes
- Process Integrity: Maintains proper flow direction in chemical reactions and manufacturing processes.
- Equipment Protection: Safeguards pumps and compressors from damage due to reverse flow.
Oil and Gas Industry
- Pipeline Safety: Ensures that oil, gas, or other hydrocarbons flow in the intended direction, preventing spills and leaks.
- Well Operations: NRVs are used in drilling and extraction equipment to control flow.
Water and Wastewater Treatment
- System Protection: Prevents treated water from mixing with untreated sources.
- Equipment Longevity: Protects pumps and other machinery from damage caused by backflow.
HVAC Systems
- Efficiency Maintenance: Controls the flow of heating and cooling fluids to prevent inefficiencies.
- Preventing Reverse Circulation: Ensures that heat exchangers and condensers operate correctly.
Fire Protection Systems
- Maintaining Pressure: NRVs keep sprinkler systems charged and ready for activation.
- Preventing Contamination: Stops stagnant water in fire systems from entering the main supply.
Selecting the Right Non Return Valve (NRV)
Factors to Consider
- Flow Characteristics: Determine the NRV type based on flow rate, velocity, and whether the flow is steady or pulsating.
- Pressure and Temperature: Choose an NRV that can handle the maximum operating pressures and temperatures of your system.
- Fluid Properties: Consider viscosity, corrosiveness, and the presence of solids or debris.
Sizing and Installation
- Proper Sizing: An undersized NRV can cause excessive pressure drop, while an oversized valve may not close properly.
- Installation Orientation: Some NRVs are designed for horizontal installation, others for vertical; incorrect orientation can impair function.
- Accessibility: Ensure the NRV is accessible for maintenance and inspection.
Maintenance and Troubleshooting of NRVs
Regular Inspection
- Visual Checks: Look for signs of leakage, corrosion, or external damage.
- Functional Testing: Verify that the NRV opens and closes smoothly without sticking.
Common Issues and Solutions
- Sticking Valve:
- Cause: Debris buildup or corrosion.
- Solution: Clean the NRV internals, install filters or strainers upstream.
- Leakage:
- Cause: Worn or damaged seat or disc.
- Solution: Replace faulty components or the entire NRV if necessary.
- Water Hammer:
- Cause: Sudden closure causing pressure surges.
- Solution: Install NRVs designed to reduce water hammer or add dampening devices.
Advantages and Limitations
Benefits of Using Non Return Valves (NRVs)
- Protection: Prevents damage to equipment by ensuring proper flow direction.
- Safety: Reduces the risk of contamination and hazardous situations.
- Efficiency: Maintains consistent operation and prevents process disruptions.
Potential Drawbacks
- Pressure Drop: Can cause a reduction in system pressure due to flow resistance.
- Maintenance Needs: Requires periodic inspection to ensure reliability.
- Noise and Water Hammer: Improper selection or installation may lead to noise or pressure surges.
Innovations and Advances in NRV Technology
Smart Valves and Monitoring
- IoT Integration: Smart NRVs equipped with sensors for real-time monitoring of flow rates and valve position.
- Predictive Maintenance: Data analytics can predict NRV failure before it occurs, reducing downtime.
Material Innovations
- Composite Materials: Development of advanced composites that offer improved strength-to-weight ratios and corrosion resistance.
- Advanced Coatings: Use of nanotechnology and specialized coatings to enhance durability and performance.
Leading Manufacturers and Suppliers in India
Overview of the Indian NRV Market
India’s NRV market is robust, driven by rapid industrialization and infrastructure development. The market is characterized by:
- Growth Trends: Increasing demand due to expansion in industries like oil and gas, water treatment, and manufacturing.
- Economic Contribution: Significant employment and economic activity generated through manufacturing and related services.
Top NRV Manufacturers
Kirloskar Brothers Limited
- Profile: A leading pump and valve manufacturer with a history spanning over a century.
- Offerings: Wide range of NRVs suitable for various applications, including water supply and industrial processes.
L&T Valves
- Profile: Part of Larsen & Toubro, a major technology, engineering, and construction conglomerate.
- Offerings: Advanced NRV solutions for oil and gas, power, and other critical sectors.
Hawa Valves
- Profile: Specializes in manufacturing valves for the oil and gas industry.
- Offerings: High-performance NRVs designed for harsh environments and demanding applications.
Advance Valves
- Profile: Known for innovative valve solutions with a focus on quality and reliability.
- Offerings: NRVs catering to HVAC, water, and industrial applications.
Local vs. Imported NRVs
- Advantages of Local NRVs:
- Cost-Effective: Lower transportation and import costs.
- Customization: Ability to tailor products to specific Indian requirements.
- After-Sales Support: Easier access to maintenance and technical services.
- Quality Comparisons: Indian manufacturers adhere to international standards, ensuring competitive quality with imported products.
Innovation and Technology in Indian NRV Manufacturing
- Adoption of New Technologies: Incorporating automation and advanced materials to enhance valve performance.
- Research and Development: Investment in R&D to develop innovative solutions, like smart NRVs integrated with IoT capabilities.
Standards and Regulations in India
Indian Standards (IS) for NRVs
- IS Codes: Relevant standards include IS 778 for brass NRVs and IS 5312 for swing check valves.
- Compliance Requirements: Manufacturers must adhere to these standards to ensure safety and quality.
Industry Certifications
- IBR Approval: Necessary for valves used in boiler systems, as per the Indian Boiler Regulations.
- ISO Certifications: Reflect adherence to international quality management systems.
Government Regulations
- Make in India Initiative: Encourages domestic production of NRVs, boosting local industries.
- Environmental Regulations: Compliance with environmental norms ensures sustainable operations.
Factors to Consider When Selecting NRVs in India
Application-Specific Requirements
- Industry Needs: Select NRVs that meet the specific demands of your sector, whether it’s high pressure in oil and gas or contamination prevention in pharmaceuticals.
- Fluid Characteristics: Consider viscosity, corrosiveness, and temperature of the fluid.
Material Selection
- Common Materials:
- Cast Iron: Cost-effective, suitable for water and non-corrosive fluids.
- Ductile Iron: Offers better strength and durability.
- Bronze: Good corrosion resistance, used in seawater applications.
- Stainless Steel: Ideal for aggressive fluids and high temperatures.
- Factors Influencing Choice: Balance between cost, availability, and compatibility with the fluid and operating conditions.
Cost and Budget Considerations
- Price Ranges: NRV costs vary based on size, material, and type.
- Quality vs. Cost: Investing in higher-quality NRVs can reduce long-term maintenance costs and downtime.
Installation and Maintenance Services
- Skilled Technicians: Availability of qualified personnel for installation and maintenance is crucial.
- After-Sales Support: Choose suppliers offering reliable service and technical assistance.
Challenges and Opportunities in the Indian NRV Market
Challenges
- Competition from Imports: Imported NRVs may offer advanced features, posing competition to local manufacturers.
- Counterfeit Products: Risk of low-quality counterfeit valves affecting system integrity.
- Infrastructure Issues: Transportation and logistics can impact timely delivery and availability.
Opportunities
- Industrial Growth: Increasing demand from expanding industries like petrochemicals, pharmaceuticals, and infrastructure.
- Government Initiatives: Policies promoting domestic manufacturing and infrastructure development.
- Technological Advancements: Scope for innovation in smart NRVs and eco-friendly solutions.
Case Studies
Successful Implementation of NRVs in Indian Industries
Municipal Water Project in Gujarat
- Challenge: Frequent backflow causing contamination in the water supply.
- Solution: Installation of high-quality swing check NRVs from a local manufacturer.
- Outcome: Improved water quality, reduced maintenance costs, and enhanced public health.
Oil Refinery in Maharashtra
- Challenge: Risk of reverse flow leading to safety hazards.
- Solution: Deployment of advanced NRVs with remote monitoring capabilities.
- Outcome: Enhanced safety, compliance with regulations, and increased operational efficiency.
Lessons Learned
- Best Practices:
- Thorough assessment of system requirements.
- Selection of NRVs that meet industry standards.
- Regular maintenance to ensure longevity.
- Avoiding Pitfalls:
- Beware of counterfeit products.
- Invest in training for proper installation and maintenance.
Future Trends
Smart NRVs and IoT Integration
- Emergence: Development of NRVs equipped with sensors and connectivity.
- Benefits: Real-time monitoring, predictive maintenance, and improved system efficiency.
- Potential in India: Significant impact on industries prioritizing automation and digitalization.
Sustainable and Eco-Friendly Solutions
- Development: Use of materials and designs that minimize environmental impact.
- Role in Sustainability: Supports India’s commitment to environmental conservation and sustainable development.
Export Potential
- Global Market: Opportunity for Indian manufacturers to expand into international markets.
- Competitive Advantage: Cost-effective production and adherence to global standards.
Frequently Asked Questions (FAQs)
What is the difference between a check valve and an NRV?
There is no significant difference; non-return valve (NRV) and check valve are terms used interchangeably. The usage often varies by region or industry, with “check valve” more common in the United States and “non-return valve” or “NRV” preferred in the UK and other regions.
Can non-return valves (NRVs) be installed vertically and horizontally?
Yes, but it depends on the NRV type. Some valves are designed specifically for vertical or horizontal installation. Always refer to the manufacturer’s guidelines to ensure proper function.
How do I know if my NRV is working properly?
Signs of a malfunctioning NRV include unusual noises, system pressure changes, and leaks. Regular testing and inspection are recommended to ensure proper operation.
How often should non-return valves (NRVs) be replaced?
The lifespan varies based on usage conditions and maintenance practices. Regular inspections can identify wear or damage early. Replace the NRV if it shows signs of significant wear, leakage, or fails to function correctly.
Are there any regulations regarding the use of non-return valves (NRVs)?
Yes, various industry standards and local codes dictate the use of NRVs to ensure safety and compliance. Examples include ASME (American Society of Mechanical Engineers) standards and API (American Petroleum Institute) guidelines.
Conclusion
Non-return valves (NRVs) are indispensable components in a wide range of systems, from residential plumbing to complex industrial processes. By allowing fluid to flow in only one direction, NRVs prevent backflow that can lead to contamination, equipment damage, and system inefficiencies. Selecting the right NRV involves understanding the specific needs of your system, including flow characteristics, pressure, temperature, and fluid properties.
Regular maintenance and proper installation are crucial to ensure the longevity and optimal performance of NRVs. As technology advances, innovations like smart valves and new materials continue to enhance their functionality and reliability.
Take Action: Evaluate your current systems to ensure that appropriate non-return valves (NRVs) are in place and functioning correctly. Consult with professionals or manufacturers to select the best NRV type for your specific application.
Additional Resources
- Related Articles:
- “Understanding Different Types of Industrial Valves”
- “Preventing Water Hammer in Piping Systems”
- References:
- ASME Standards on Valves and Piping Systems
- API Guidelines for Valve Selection and Maintenance
- Manufacturer Technical Datasheets and Manuals
https://www.grundfos.com/in/learn/research-and-insights/non-return-valve
By gaining a comprehensive understanding of non-return valves (NRVs), you can make informed decisions that enhance the safety, efficiency, and reliability of your systems. Whether you’re an engineer, technician, or homeowner, knowledge of these critical components is essential in today’s fluid dynamics landscape.
